150205. HDTR 830
  • 150205. HDTR 830

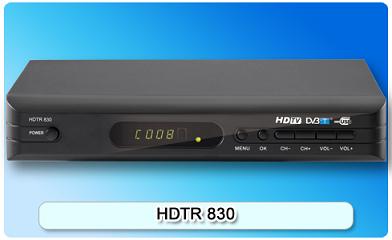

150205. HDTR 830

Fully compliant with DVB-T; USB 2.0 for software update/PVR/media play back; Time shift supported with external hard drive disc; Full HD output in 720p, 1080i, 1080p; HDCP protection; Multi-lingual OSD and user-friendly UI.
Detailed description

Features:

  • Fully compliant with DVB-T
  • USB 2.0 for software update/PVR/media play back
  • Time shift supported with external hard drive disc
  • Full HD output in 720p, 1080i, 1080p
  • HDCP protection
  • Multi-lingual OSD and user-friendly UI
  • Parental Control, Teletext, EPG supported
  • Favorite Group supported
  • Less than 0.5 Watt in standby

Specifications

DVB-T ANT Input/Demodulation

Connector Type IEC-Female * 1 for ANT IN , IEC-Male * 1 for LOOP THROUGH
Input Frequency (UHF)470 ∽ 862MHz,(VHF)170 ∽ 230MHz
Bandwidth 6,7,8MHz
Signal Input level -78 ∽ -10dBm
Input Impedance 75Ohm
ANT Power 5V(On/Off),Imax=100mA
Demodulation Scheme QPSK,16-QAM,64-QAM
Demodulation Type COFDM, fully compliant with DVB-T Standard

Data Service Port

Connector USB
Data Protocol USB2.0 interface

Media Features

Picture JPEG,BMP,PNG

Power Supply

Adapter

AC Input 100-240VAC@50/60Hz±5%
DC Output 12V 1.5Amax

Receiver

DC Input 12V/2Amin
Power Consumption 10W max

Memory

Flash 32Mbit
DDRII Memory 512Mbit

Physical Characteristics

Physical Size 220mm * 136mm * 39mm

Front Panel

Key POWER, MENU, OK, CH+, CH-, VOL+, VOL-
Indicator LED Indicator for Power On/Off
Remote Control input Infra-red receiver
Display Option for 4 Digits 7-segment LED display

Rear Panel

Connector 2 * IEC connector for ANT IN and LOOP THROUGH
1 * HDMI 1.3 interface, up to 1080p
1 * AV RCA6(YPbPr, CVBS, L/R)(Optical)(Coaxial)
1 * COAXIAL
1 * OPTICAL
1 * USB2.0 interface

Remote Specifications

Battery (AAA 1.5V)*2
Operation Distance 8m Min.(front distance from receiver)
Operation Angle Range ±30°(horizontal),±20°(vertical)
