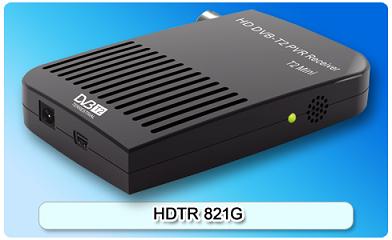

150310. HDTR 821G
  • 150310. HDTR 821G

150310. HDTR 821G

Fully compliant with DVB-T2; USB2.0 for software update/PVR/media play back; Full HD output in 720p,1080i,1080p; HDCP protection; Time shift supported with external hard drive disc; DVB subtitle supported; Less than 0.5 Watt in standby; Multi-lingual OSD and user-friendly UI; Parental Control,Teletext,EPG supported; Support movie files with MPEG1/MPEG2/MPEG4/H264/VC-1/MOTION JPEG, so on. Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a); Suport picture with JPEG, BMP, PNG.
Detailed description

Features:

  • Fully compliant with DVB-T2
  • USB2.0 for software update/PVR/media play back
  • Full HD output in 720p,1080i,1080p
  • HDCP protection
  • Time shift supported with external hard drive disc
  • DVB subtitle supported
  • Less than 0.5 Watt in standby
  • Multi-lingual OSD and user-friendly UI
  • Parental Control,Teletext,EPG supported
  • Support movie files with MPEG1/MPEG2/MPEG4/H264/VC-1/MOTION JPEG, so on.
  • Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a)
  • Suport picture with JPEG, BMP, PNG

Specifications

DVB-T2 ANT Input/Demodulation

Connector Type IEC-Female for ANT IN
Input Frequency (UHF)470∽866MHz,(VHF)170∽230MHz
Bandwidth 6,7,8MHz
Signal Input level -78 ∽ -20dBm
Input Impedance 75Ohm
ANT Power 5V(On/Off), Imax=100mA
Demodulation Scheme QPSK, 16-QAM, 64-QAM, 256-QAM
Demodulation Type OFDM, fully compliant with DVB-T2 Standard

Media Features

Picture JPEG,BMP,PNG

Power Supply

AC Input 100-240VAC@50/60Hz
Power Consumption 10Wmax

Memory

Flash 32Mbit
DDRII Memory 512Mbit

Physical Characteristics

Physical Size 115mm * 75mm * 22mm

Front Panel

Indicator LED Indicator for Power On/Off
Remote Control Input Infra-red receiver

Rear Panel

Connector 1 * IEC connector for ANT IN
1 * HDMI 1.3 Interface, up to 1080p
1 * RCA3(CVBS, L/R)
1 * USB2.0

Remote Specifications

Battery (AAA 1.5V)*2
Operation Distance 8m Min.(front distance from receiver)
Operation Angle Range ±45°(horizontal),±20°(vertical)
