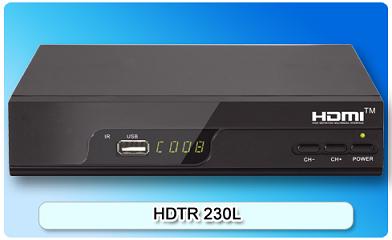

150401. HDTR 230L

Fully compliant with ISDB-T; USB 2.0 for software update/PVR/media play back; DVB subtitle supported; Automatic/manual scan; PAL/NTSC/SECAM TV format supported; Full HD output in 720p, 1080i, 1080p.

Detailed description

Features:

Fully compliant with ISDB-T
USB 2.0 for software update/PVR/media play back
DVB subtitle supported
Automatic/manual scan
PAL/NTSC/SECAM TV format supported
Full HD output in 720p, 1080i, 1080p
HDCP protection
16:9PillarBox/16:9Pan&Scan/4:3Full/4:3Pan&Scan/4:3WideScreen/Auto aspect ratio supported
LCN (Local Control Network)
Multi-lingual OSD and user-friendly UI
Parental Control, Teletext, EPG supported
Time-shift and PVR function supported, recording TV and playback media files with external storage devices (USB stick / USB HDD)
Timer function supported Favorite Group supported
Support movie files with MPEG1/MPEG2/MPEG4/H264/VC-1/MOTION JPEG, so on.
Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a)
Suport picture with JPEG, BMP, PNG

Specifications

ANT INPUT/DEMODULATION
Connector Type	F-Female x1 for ANT input;F- Female x1 for LOOP
Input Frequency	(UHF)470∽806MHz,(VHF)174∽216MHz
Bandwidth	6,7,8MHz
Signal Input level	-78dBm∽-20dBm
Input Impedance	75Ohm
ANT Power	5V(On/Off),Imax=100mA
Demodulation Scheme	QPSK,16-QAM,64-QAM
Demodulation Type	OFDM, fully compliant with ISDB-T Standard
Media Features
Picture	JPEG,BMP,PNG
Power Supply
Adapter
AC Input	100-240VAC@50/60Hz
Power Consumption	Max10W
Memory
Flash	32Mbit
DDRII Memory	512Mbit
Physical Characteristics
Physical Size	170mm * 96mm * 40mm
Front Panel
Key	POWER, CH+,CH-
Indicator	LED Indicator for Power On/Off
Remote Control Input	Infra-red receiver
Display	Option for 4 Digits 7-segment LED display
Connector	1xUSB2.0 interface

Rear Panel
Connector	2 x F-Female connector for ANT.IN and Loop
	HDMI 1.3 interface, up to 1080p
	1xRCA( CVBS, L/R)
	1xCOAXIAL
Remote Specifications
Battery	(AAA 1.5V)*2
Operation Distance	8m Min.（front distance from receiver）
Operation Angle Range	±45°(horizontal)，±20°(vertical)
