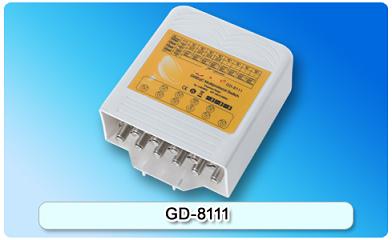

150555. GD-8111 Hi-isolation and short-circuit protection 9 in 1 DiSEqC switch

Capable of connecting eight SATV signals, one ANT signal or FM broadcast ;simultaneously，The inputs are controlled from a receiver and there are 4 modes of control which can be selected by a DIP switch Excellent quality tin-plate housing and exquisite plastic case shell attached, Can work normally outdoors under unsheltered circumstance; Excellent quality component, professional circuit design and low loss.

Detailed description

Features:

Capable of connecting eight SATV signals, one ANT signal or FM broadcast simultaneously，The inputs are controlled from a receiver and there are 4 modes of control which can be selected by a DIP switch
Excellent quality tin-plate housing and exquisite plastic case shell attached, Can work normally outdoors under unsheltered circumstance．
Excellent quality component, professional circuit design and low loss
Excellent quality chip, professional program design and compatible with more types of satellite receiver
30dB isolation and minimize the mutual interference
Short-circuit protection design ensures more secure usage
Utilize one coaxial cable to transmit control and SAT／ANT signal simultaneously

Specifications

Item	Specification	Item	Specification
Frequency Range SAT	950-2400(MHz)	Normal Working Voltage	12-20(V)
Frequency Range ANT	5-860(MHz)	DC Power Consumption	10(mA)
Insertion Loss	5(dB)	DC Max Power Passing	500(mA)
Isolation	30(dB)	Impedance(all ports)	75(Ω)
Return Loss	8(dB)
