150603. MS-2201 2 in 2 Multiswitch, 2 In Series
  • 150603. MS-2201 2 in 2 Multiswitch, 2 In Series

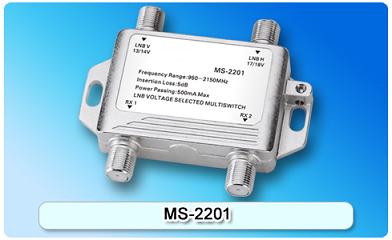

150603. MS-2201 2 in 2 Multiswitch, 2 In Series

Zinc die-cast housing, nickel-plated; Excellent quality component, professional circuit design and low loss 13/18V supplied by satellite receiver through coaxial cable to switch corresponding port Capable of connecting two SATV signals simultaneously, which is switched through 13/18V.
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Excellent quality component, professional circuit design and low loss
  • 13/18V supplied by satellite receiver through coaxial cable to switch corresponding port
  • Capable of connecting two SATV signals simultaneously, which is switched through 13/18V
  • Distributed into three subscribers to use simultaneously and no mutual interference
  • Applicable to multi-satellite and multi-receiver usage

Specifications

Item

Specification

Item

Specification

Frequency Range

950-2150(MHz)

Normal Working Voltage

12-20(V)

Insertion Loss

5(dB)

DC Power Consumption

30(mA)

Isolation

25(dB)

DC Max Power Passing

500(mA)

Return Loss

10(dB)

Impedance(all ports)

75(Ω)
