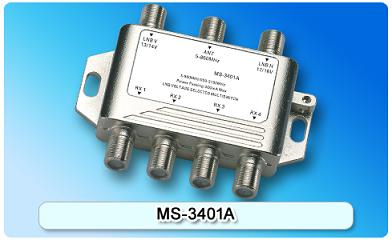

150616. MS-3401A 3 in 4 Multiswitch, 3 In Series

Zinc die-cast housing, nickel-plated; Excellent quality component, professional circuit design and low loss; 13/18V supplied by satellite receiver through coaxial cable to switch corresponding port; Capable of connecting two SATV signals, one ANT signal or FM broadcast simultaneously.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Excellent quality component, professional circuit design and low loss
13/18V supplied by satellite receiver through coaxial cable to switch corresponding port
Capable of connecting two SATV signals, one ANT signal or FM broadcast simultaneously
Two SATV signals switched through 13/18V
Distributed into four subscribers to use simultaneously and no mutual interference
Applicable to multi-satellite and multi-receiver usage

Specifications

Item	Specification	Item	Specification
Frequency Range ANT	5-860 (MHz)	Return Loss ANT Input	12(dB)
Frequency Range SAT	950-2150 (MHz)	Return Loss Outputs	8(dB)
Insertion Loss ANT	5(dB)	Output Level ANT	85(dBuV)
Insertion Loss SAT	5(dB)	Output Level SAT	95(dBuV )
Isolation In-In SAT	25(dB)	Normal Working Voltage	12-20 (V)
Isolation In-In SAT/ANT	25(dB)	DC Power Consumption	60(mA)
Isolation Between Outputs	25(dB)	DC Max Power Passing	500(mA)
Isolation H/V	28(dB)	Impedance(all ports)	75(Ω )
Return Loss SAT Inputs	10(dB)

Switching Voltage : 13/18V
Connectors:“F” type female
