150632. MS-5801 5 in 8 Multiswitch, 5 In Series
  • 150632. MS-5801 5 in 8 Multiswitch, 5 In Series

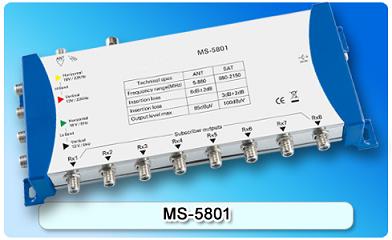

150632. MS-5801 5 in 8 Multiswitch, 5 In Series

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient; Excellent quality component, professional amplification design and low loss; An external 20V、700mA DC power offering more stable operation; 13/18V、0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port.
Detailed description

Features:

  • Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient
  • Excellent quality component, professional amplification design and low loss
  • An external 20V、700mA DC power offering more stable operation
  • 13/18V、0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port
  • Capable of connecting four SATV signals, one ANT signal or FM broadcast simultaneously
  • Four SATV signals switched through 13/18V、0/22KHz
  • Distributed into eight subscribers to use simultaneously and no mutual interference
  • Applicable to multi-satellite and multi-receiver usage

Specifications

Item

Specification

Item Specification
Frequency Range ANT 5-860(MHz) Return Loss ANT Input 12(dB)
Frequency Range SAT 950-2150 (MHz) Return Loss Outputs 8(dB)
Insertion Loss ANT 5(dB) Output Level ANT 85(dBuV)
Insertion Loss SAT 3(dB) Output Level SAT 100(dBuV)
Isolation In-In SAT 25(dB) Normal Working Voltage 12-20 (V)
Isolation In-In SAT/ANT 25(dB) DC Power Consumption 45(mA)
Isolation Between Outputs 25(dB) Supply Voltage 20V(±1)700mA
Switching Isolation SAT Inputs 28(dB) Temperature Range -20℃-60℃
Return Loss SAT Inputs 10(dB) Impedance(all ports) 75(Ω)
Switching Voltage、Signal : 13/18V 、0/22KHz
Connectors:“F” type female
