150647. MS-5524C Cascadable Multiswitch of 5 in 24, 5 In Series
  • 150647. MS-5524C Cascadable Multiswitch of 5 in 24, 5 In Series

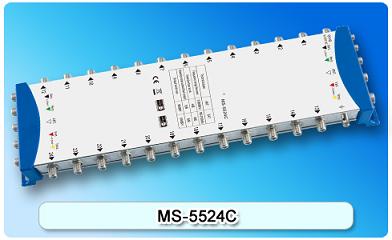

150647. MS-5524C Cascadable Multiswitch of 5 in 24, 5 In Series

C means Cascade type, E means End type Power supplied by satellite receiver and external power supply; 4 SAT inputs + 1 ANT input, 4 or 8 or 12 or 16 outputs. Cascade type; supports 4SAT + 1ANT connect with next stage; SAT IF selected by 13/18V, 0-22KHz and DiSEqC 1.0/2.0 commands.
Detailed description

Features:

  • C means Cascade type, E means End type
  • Power supplied by satellite receiver and external power supply
  • 4 SAT inputs + 1 ANT input, 4 or 8 or 12 or 16 outputs. Cascade type
  • supports 4SAT + 1ANT connect with next stage
  • SAT IF selected by 13/18V, 0-22KHz and DiSEqC 1.0/2.0 commands

Specifications

Item

Specification

Item

Specification

Frequency Range ANT

5-860(MHz)

Return Loss SAT Inputs

10(dB)

Frequency Range SAT

950-2150(MHz)

Return Loss ANT Input

12(dB)

Insertion Loss ANT

6(dB)

Return Loss Outputs

8(dB)

Insertion Loss SAT

5(dB)

Output Level ANT

88(dBuV)

Insertion Loss Trunk

ANT.: 6(dB) SAT.: 7(dB)

Output Level SAT

100(dBuV)

Isolation In-In SAT

25(dB)

Normal Working Voltage

12-20(V)

Isolation In-In SAT/ANT

25(dB)

DC Power Consumption

80(mA)

Isolation Between Outputs

25(dB)

Supply Voltage(VDC)

20V(±1)1200mA

Switching Isolation SAT Inputs

28(dB)

Temperature Range

-20℃-60℃

Cross Isolation(for cascadable type)

25(dB)

Impedance(all ports)

75(Ω)

Switching Voltage、Signal : 13/18V 、0/22KHz
Connectors:“F” type female
