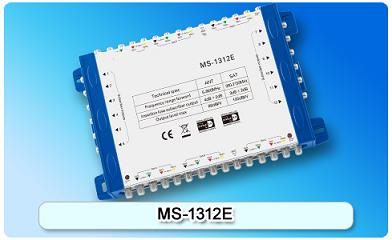

150684. MS-1312E End-type 13 in 12 Multiswitch, 13 In Series
  • 150684. MS-1312E End-type 13 in 12 Multiswitch, 13 In Series

150684. MS-1312E End-type 13 in 12 Multiswitch, 13 In Series

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient; Excellent quality component, professional amplification design and low loss; External 20V 2000mA DC power offering more stable operation; 13/18V 0/22KHz DiSEqC 1.0/2.0 supplied by satellite receiver through coaxial cable to switch corresponding port.
Detailed description



Features:

  • Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient
  • Excellent quality component, professional amplification design and low loss
  • External 20V 2000mA DC power offering more stable operation
  • 13/18V 0/22KHz DiSEqC 1.0/2.0 supplied by satellite receiver through coaxial cable to switch corresponding port
  • Capable of connecting twelve SATV signals, one ANT signal or FM broadcast simultaneously
  • Twelve SATV signals switched through 13/18V 0/22KHz DiSEqC 1.0/2.0 from satellite receiver
  • Distributed into16 subscribers to use simultaneously and no mutual interference
  • Red LED for power, Yellow LED for power link
  • Supports multi-satellite multi-receiver and cascadable usage


Specifications


Item

Specification

Item

Specification

Frequency Range ANT

5-860(MHz)

Return Loss ANT Input

12(dB)

Frequency Range SAT

950-2150 (MHz)

Return Loss Outputs

8(dB)

Insertion Loss ANT

5(dB)

Output Level ANT

88(dBuV)

Insertion Loss SAT

4(dB)

Output Level SAT

100(dBuV)

Isolation In-In SAT

25(dB)

Normal Working Voltage

12-20(V)

Isolation In-In SAT/ANT

25(dB)

DC Power Consumption

50(mA)

Isolation Between Outputs

25(dB)

Supply Voltage(VDC)

20V(±1)3000mA

Switching Isolation SAT Inputs

28(dB)

Temperature Range

-20℃-60℃

Return Loss SAT Inputs

10(dB)

Impedance(all ports)

75(Ω)



Switching Voltage、Signal : 13/18V 、0/22KHz、DiSEqC 1.0,2.0
Connectors:“F” type female
