151456. GC-2002 5-1000MHz 2-way Splitter
  • 151456. GC-2002 5-1000MHz 2-way Splitter

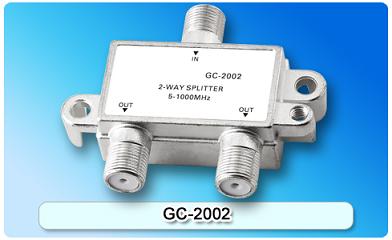

151456. GC-2002 5-1000MHz 2-way Splitter

Zinc die-cast housing, zinc-plated; Light weight and compact size; Easy installation with two edge hole sites; Screening factor: 5-1000MHz≥100dB; Low insertion loss, high isolation, perfect performance index; All ports F-(f)connector,75Ohm.
Detailed description

Features:

  • Zinc die-cast housing, zinc-plated
  • Light weight and compact size
  • Easy installation with two edge hole sites
  • Screening factor: 5-1000MHz≥100dB
  • Low insertion loss, high isolation, perfect performance index
  • All ports F-(f)connector,75Ohm

Specifications

Frequency Range(MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤3.5

≥30

≥20

40-470

≤3.6

≥28

≥20

470-860

≤3.8

≥28

≥18

860-1000

≤4.0

≥25

≥17
