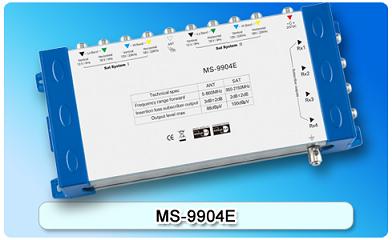

150654. MS-9904E End-type 9 in 4 Multiswitch, 9 In Series

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient; Excellent quality component, professional amplification design and low loss; External 20V 1200mA DC power offering more stable operation; 13/18V 0/22KHz DiSEqC 1.0/2.0 supplied by satellite receiver through coaxial cable to switch corresponding port.

Detailed description

Features:

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient
Excellent quality component, professional amplification design and low loss
External 20V 1200mA DC power offering more stable operation
13/18V 0/22KHz DiSEqC 1.0/2.0 supplied by satellite receiver through coaxial cable to switch corresponding port
Capable of connecting eight SATV signals, one ANT signal or FM broadcast simultaneously
Eight SATV signals switched through 13/18V 0/22KHz DiSEqC 1.0/2.0 from satellite receiver
Distributed into 4 subscribers to use simultaneously and no mutual interference
Power indicator design ensures more secure usage
Supports multi-satellite、multi-receiver and for last stage usage

Specifications

Item	Specification	Item	Specification
Frequency Range ANT	5-860(MHz)	Return Loss ANT Input	12(dB)
Frequency Range SAT	950-2150 (MHz)	Return Loss Outputs	8(dB)
Insertion Loss ANT	5(dB)	Output Level ANT	88(dBuV)
Insertion Loss SAT	4(dB)	Output Level SAT	100(dBuV)
Isolation In-In SAT	25(dB)	Normal Working Voltage	12-20(V)
Isolation In-In SAT/ANT	25(dB)	DC Power Consumption	200(mA)
Isolation Between Outputs	25(dB)	Supply Voltage(VDC)	20V(±1)1200mA
Switching Isolation SAT Inputs	28(dB)	Temperature Range	-20℃-60℃
Return Loss SAT Inputs	10(dB)	Impedance(all ports)	75(Ω)

Switching Voltage、Signal : 13/18V 、0/22KHz、DiSEqC 1.0，2.0
Connectors:“F” type female
