150836. GS08-03 SAT 3-Way Splitter
  • 150836. GS08-03 SAT 3-Way Splitter

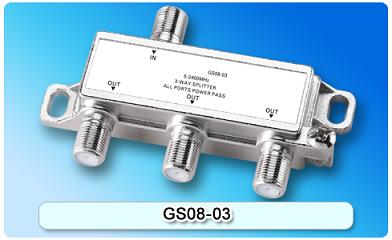

150836. GS08-03 SAT 3-Way Splitter

Zinc die-cast housing, tin-plated; Easy installation with two edge hole sites; Screening factor: 5-2400MHz≥100dB; Micro-strip circuit design and perfect performance index; Designed for SATV/CATV; Power passing-24V 0.8A(MAX.).
Detailed description


Features:

  • Zinc die-cast housing, tin-plated
  • Easy installation with two edge hole sites
  • Screening factor: 5-2400MHz≥100dB
  • Micro-strip circuit design and perfect performance index
  • Designed for SATV/CATV
  • Power passing-24V 0.8A(MAX.)
  • All ports F-(f)connector,75 Ohm

Specifications


Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤7.5

≥20

≥10

40-1000

≤8.0

≥20

≥10

1000-1750

≤9.5

≥20

≥10

1750-2400

≤10.0

≥20

≥10
