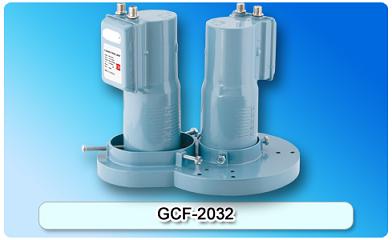

151047. GCF-2032 2 Satellite in one dish, Dual Receiver LNBF(Twin LNBF*2+2X1 DiSEqC*2 Outside)
  • 151047. GCF-2032 2 Satellite in one dish, Dual Receiver LNBF(Twin LNBF*2+2X1 DiSEqC*2 Outside)

151047. GCF-2032 2 Satellite in one dish, Dual Receiver LNBF(Twin LNBF*2+2X1 DiSEqC*2 Outside)

Dual Polarity Switchable; Super low Noise; Digital Ready; High Gain Output; East Installation; Weather Proof.
Detailed description

Features:

  • Dual Polarity Switchable
  • Super low Noise
  • Digital Ready
  • High Gain Output
  • East Installation
  • Weather Proof

Specifications

Item

Specification

Item

Specification

Input Frequency Range

3.40~4.20GHz

L.O. Phase Noise -70dBc/Hz@10KHz
-90dBc/Hz@100KHz
-110dBc/Hz@1MHz
Output Frequency Range

950-1750MHz


Image Rejection 40dB(Min.)
Noise Figure 15°K(Typ.) Output VSWR 2.5:1(Max.)
Conversion Gain 65dB(Typ.) Output Power 0dBm (Min.)(at 1dB gain compression)
Gain Flatness ±1dB(36MHz) Connector Type 75Ω Female Connector
Cross POL. Isolation 20dB(Typ.) DC Current Consumption 150mA(Max.)
L.O. Frequency 5.150GHz F/D Ratio 0.28~0.42 (Adjustable)
L.O. Frequency Stability ±1.0MHz(Max.)@+25℃
±2.0MHz(Max.)@-30℃~+70℃
Input Reflector Type Prime focus
Operating Temperature -30℃~+70℃ POL. Switching Voltage

10.5~14.0V@VP
16.0~20.0V@HP
