151106. SF-6000S2+T2 Combo S2+T2 Signal Meter
  • 151106. SF-6000S2+T2 Combo S2+T2 Signal Meter

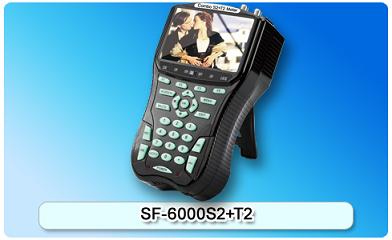

151106. SF-6000S2+T2 Combo S2+T2 Signal Meter

Combo of DVB-S2 and DVB-T2; Spectrum function for satellite & terrestrial signal; Real time constellation display; Full color LCD; High speed spectrum and search function; Support edit manually by on-board keypad.
Detailed description

Features:

  • Combo of DVB-S2 and DVB-T2
  • Spectrum function for satellite & terrestrial signal
  • Real time constellation display
  • Full color LCD
  • High speed spectrum and search function
  • Support edit manually by on-board keypad

Specifications

(DVB-S2)Input Signal (DVB-S2)Signal Processing

Frequency Range

950MHz~2150MHz

Demodulation

QPSK,8PSK

Signal Level

-25~-65dBm

Symbol Rate

2~45Mbps

Impedance

75Ω

22KHz tone

Supported

    DiSEqC 1.0/1.1/1.2

Supported

(DVB-T2)Input Signal (DVB-T2)Signal Processing

Frequency Range

170~230MHz(VHF)
470~862MHz(UHF)

Demodulation Scheme

QPSK,16QAM,64QAM,256QAM

Signal Level

-78~-10dBm

Demodulation Type

OFDM Spectrum
1K,2K,4K,8K,16K,32K

Impedance

75Ω

Bandwidth

6MHz,7MHz,8MHz

Others Power Supply

Dimensions

200×120×55(mm)

Power For LNB

13V,18V,<500mA

Operating Temperature

0℃ ~ + 40℃

Power Adapter Input

AC110V/60Hz/220V/50Hz±10%

LCD Display

4.3inch

Power Adapter Output

12V/3A

Audio Output

built-in loudspeaker

Battery Output

12.6V 1900mAh

Input Connector

F type/IEC type

Operating Time of Battery

Last for 2-3 hours (fully charged)



Charging Hours

More than 3 hours,
no more than 6 hours at most
