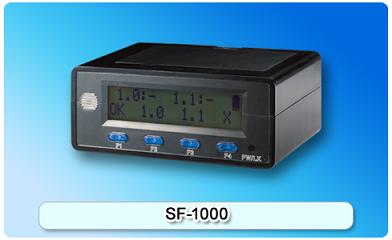

151110. SF-1000 Digtal Satellite Finder

Use LCD to display the satellite signal strength and quality; Set up LO. of the LNB and the parameters of satellite TV , find satellite signal accurately With auto search function; Built-in controllable LCD backlight and signal alert speaker; Built-in rechargeable battery , don't need external power.

Detailed description

Features:

Use LCD to display the satellite signal strength and quality
Set up LO. of the LNB and the parameters of satellite TV , find satellite signal accurately
With auto search function
Built-in controllable LCD backlight and signal alert speaker
Built-in rechargeable battery , don't need external power , convenient for satellite finding
Auto storing the parameters while power outage
Compatible with DiSEqC1.0、1.1 and DiSEqC1.2 to drive the polar mount antenna
Can use the USB cable to connect computer and edit the parameters of satellite TV
Compatible with DVB-S/S2 demodulation function

Specifications

Item	Specification	Item	Specification
Frequency Range	950-2150MHz	Supply Voltage	16V DC 750mA
Input Level Range	-65dBm~ -25dBm	Operating Temperature	0℃～ +40℃
Impedance	75Ω
