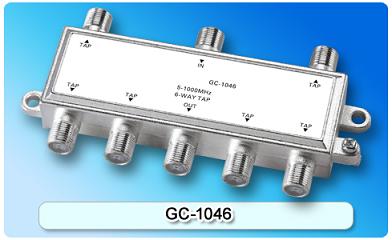

151511. GC-1046 5-1000MHz 6-way Tap

Zinc die-cast housing, tin-plated; Screening factor: 5-1000MHz≥100dB; Easy installation; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm.

Detailed description

Features:

Zinc die-cast housing, tin-plated
Screening factor: 5-1000MHz≥100dB
Easy installation
Low insertion loss,high return loss and isolation
Micro-strip circuit design and perfect performance index
All ports F-(f)connector,75 Ohm

Specifications

Item	Frequency Range	12	14	16	18	20	22	24	27	30
Insertion Loss (dB)	5-40(MHz)	3.5	3.5	2	2	1.2	0.8	0.8	0.8	0.8
	40-470(MHz)	3.8	3.5	2	2	1.2	0.8	0.8	0.8	0.8
	470-860(MHz)	4.0	4.0	2.2	2.2	1.5	1	1	1	1
	860-1000(MHz)	4.5	4.2	2.5	2.2	1.5	1	1	1	1
Tap Loss Tolerance (dB)	5-40(MHz)	±1.0
	40-470(MHz)	±1.0
	470-860(MHz)	±1.5
	860-1000(MHz)	±2.0
Mutual Isolation (dB)	5-40(MHz)	28	28	28	28	28	28	28	28	28
	40-470(MHz)	28	28	28	28	28	28	28	28	28
	470-860(MHz)	25	25	25	25	25	25	25	25	25
	860-1000(MHz)	22	22	25	25	25	25	25	25	25
Reverse Isolation (dB)	5-40(MHz)	28	28	30	30	30	30	40	40	40
	40-470(MHz)	25	28	28	25	30	30	35	35	35
	470-860(MHz)	25	25	25	25	28	28	30	30	30
	860-1000(MHz)	25	25	25	25	25	27	28	28	28
Return Loss (dB)	5-40(MHz)	20	20	20	20	20	20	20	20	20
	40-470(MHz)	20	20	20	20	20	20	20	20	20
	470-860(MHz)	18	18	18	18	18	18	18	18	18
	860-1000(MHz)	18	18	18	18	18	18	18	18	18
