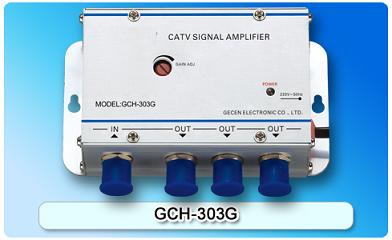

151810. GCH-303G 3-way Splitter Amplifier New
  • 151810. GCH-303G 3-way Splitter Amplifier New

151810. GCH-303G 3-way Splitter Amplifier New

Designed for CATV indoor use and meet multi-user; Aluminum die-cast housing, fast heat-sinking With gain adjustable functions manually; All ports F female connector 75Ohm , convenient to use.
Detailed description

Features:

  • Designed for CATV indoor use and meet multi-user
  • Aluminum die-cast housing, fast heat-sinking
  • With gain adjustable functions manually
  • All ports F female connector 75Ohm , convenient to use

Specifications

Item

Unit

Specification

Item

Unit

Specification

Frequency Range

MHz

45-862

Noise Figure

dB

≤6

Gain

dB

20±1.0

Power Consumption

W

2

Gain Adjustable Range

dB

0-20

Working Voltage

V

AC175-250

Flatness In Band

dB

±1.0

Operating Temperature

-40-50

Return Loss

dB

≥16
