152203. GF-HP01 High Pass Filter(47-1000MHz)
  • 152203. GF-HP01 High Pass Filter(47-1000MHz)

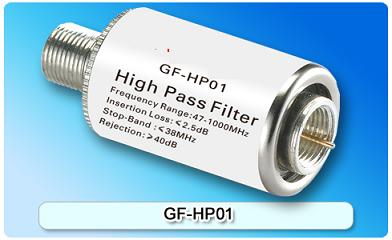

152203. GF-HP01 High Pass Filter(47-1000MHz)

Low insertion loss, high stop-band rejection Double copper pipe protection, high-screening factor; Built-in O-ring, high water-proof effect; Designed for CATV system.
Detailed description

Features:

  • Low insertion loss, high stop-band rejection
  • Double copper pipe protection, high-screening factor
  • Built-in O-ring, high water-proof effect
  • Designed for CATV system

Specifications

Item UNIT Specification
Frequency Range MHz 47-1000
Cutoff Frequency MHz 5-38
Insertion loss dB 2.5(max)
Stop-band rejection dB 40(min)
Return loss dB 10(min)
Impedance Ω 75

Connectors:"F"type
