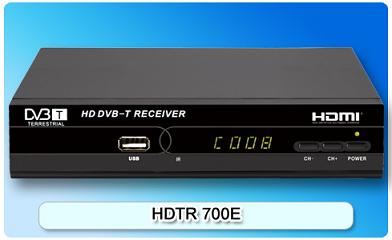

150201. HDTR 700E
  • 150201. HDTR 700E

150201. HDTR 700E

Fully compliant with DVB-T; USB2.0 for software update/PVR/media play back; Time shift supported with external hard drive disc ;-lingual OSD and user-friendly UI Full HD output in 720p,1080i,1080p; HDCP protection.
Detailed description

Features:

  • Fully compliant with DVB-T
  • USB2.0 for software update/PVR/media play back
  • Time shift supported with external hard drive disc
  • Multi-lingual OSD and user-friendly UI
  • Full HD output in 720p,1080i,1080p
  • HDCP protection
  • Parental Control,Teletext,EPG supported
  • Favorite Group supported
  • Less than 0.5 Watt in standby

Specifications

DVB-T ANT Input/Demodulation

Connector Type IEC-Female * 1 for ANT IN, IEC-Male * 1 for ANT OUT
Input Frequency (UHF)470∽866MHz,(VHF)170∽230MHz
Bandwidth 6, 7, 8 MHz
Signal Input level -78∽-20dBm
Input Impedance 75Ohm
ANT Power 5V(On/Off), Imax=100mA
Demodulation Scheme QPSK, 16-QAM, 64-QAM
Demodulation Type COFDM, fully compliant with DVB-T Standard

Media Features

Picture JPEG,BMP,PNG

Power Supply

AC Input 100-240VAC@50/60Hz±5%
Power Consumption 10W

Memory

Flash 32Mbit
DDRII Memory 512Mbit

Physical Characteristics

Physical Size 170mm * 96mm * 40mm

Front Panel

Key POWER, CH+, CH-
Indicator LED Indicator for Power On/Off
Interface 1 * USB2.0 interface
Remote Control Input Infra-red receiver
Display 4 Digits 7-segment LED display
Interface 1*USB2.0

Rear Panel

Connector 2 * IEC connector for ANT IN and ANT OUT
1 * HDMI 1.3 interface, up to 1080p
1 * AV RCA3(CVBS, L/R)
1 * COAXIAL

Remote Specifications

Battery (AAA 1.5V)*2
Operation Distance 8m Min.(front distance from receiver)
Operation Angle Range ±45°(horizontal), ±20°(vertical)
