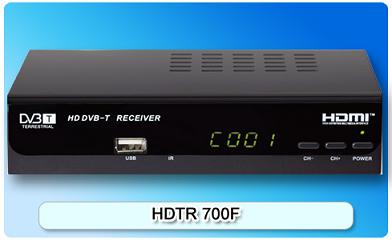

150203. HDTR 700F

Fully compliant with DVB-T ; USB2.0 for software update/PVR/media play back ; Time shift supported with external hard drive disc; Multi-lingual OSD and user-friendly UI; Full HD output in 720p,1080i,1080p; HDCP protection; Parental Control,Teletext,EPG supported; Favorite Group supported; Less than 0.5 Watt in standby.

Detailed description

Features:

Fully compliant with DVB-T
USB2.0 for software update/PVR/media play back
Time shift supported with external hard drive disc
Multi-lingual OSD and user-friendly UI
Full HD output in 720p,1080i,1080p
HDCP protection
Parental Control,Teletext,EPG supported
Favorite Group supported
Less than 0.5 Watt in standby

Specifications

DVB-T ANT Input/Demodulation
Connector Type	IEC-Female * 1 for ANT IN, IEC-Male * 1 for ANT OUT
Input Frequency	(UHF)470∽866MHz,(VHF)170∽230MHz
Bandwidth	6, 7, 8 MHz
Signal Input level	-78∽-20dBm
Input Impedance	75Ohm
ANT Power	5V(On/Off), Imax=100mA
Demodulation Scheme	QPSK, 16-QAM, 64-QAM
Demodulation Type	COFDM, fully compliant with DVB-T Standard
Media Features
Picture	JPEG,BMP,PNG
Power Supply
AC Input	100-240VAC@50/60Hz±5%
Power Consumption	10W
Memory
Flash	32Mbit
DDRII Memory	512Mbit
Physical Characteristics
Physical Size	170mm * 96mm * 40mm
Front Panel
Key	POWER, CH+, CH-
Indicator	LED Indicator for Power On/Off
Interface	1 * USB2.0 interface
Remote Control Input	Infra-red receiver
Display	4 Digits 7-segment LED display
Interface	1*USB2.0
Rear Panel
Connector	2 * IEC connector for ANT IN and ANT OUT
	1 * HDMI 1.3 interface, up to 1080p
	1 * AV RCA3(CVBS, L/R)
	1 * COAXIAL
Remote Specifications
Battery	(AAA 1.5V)*2
Operation Distance	8m Min.（front distance from receiver）
Operation Angle Range	±45°(horizontal), ±20°(vertical)
