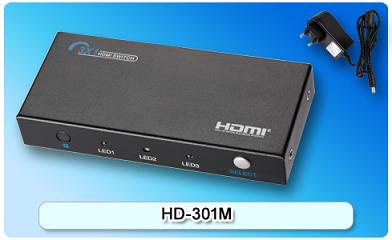

152602. HD-301M HDMI Switch
  • 152602. HD-301M HDMI Switch

152602. HD-301M HDMI Switch

Supports HDMI 1.3 version; Compatible backward with DVI input signal; High performance, up to 2.5Gbps per channel; Supports full HD video and audio transmission; Supports 12-bit Deep Color per channel; Suitable for HDCP compliant equipments.
Detailed description

Features:

  • Supports HDMI 1.3 version
  • Compatible backward with DVI input signal
  • High performance, up to 2.5Gbps per channel
  • Supports full HD video and audio transmission
  • Supports 12-bit Deep Color per channel
  • Suitable for HDCP compliant equipments
  • Ensures the high definition signal transmission without any signal loss
  • Plug and Play. No software installation required
  • LED indicators for input selection
  • Encloses a Remote Controller for operational flexibility and easy control
  • Differential Interface compatible with Transition Minimized Differential Signaling (TMDS) Electrical Specification
  • Supports high video resolution up to 1920*1200 including 720p, 1080i and 1080p
  • Easy to install and supports to link single HD displayer for multiple sources, such as DVD Player and Satellite Receiver, Set Top Boxes and so on

Specifications

Item

Specification

Item

Specification

Switchable Input Ports

3 ports HDMI Switch

Single Link Range

1920X1200

HDMI Source Input Port

3

Performance per Channel

Up to 2.5Gbps

Output Port to Display

1

Vertical Frequency Range

60Hz

Input Port Connector

HDMI 19 pin A type

Power Consumption (max.)

5 Watts

Output Port Connector

HDMI 19 pin A type

Operation Temperature

0℃ to 70℃

HDCP Compliant

Yes

Power Adapter

5V 2 A

Source Selection

Panel Button or IR Remote

Housing Material

SPCC

Source Port LED

3

Dimension

126*56*22mm
