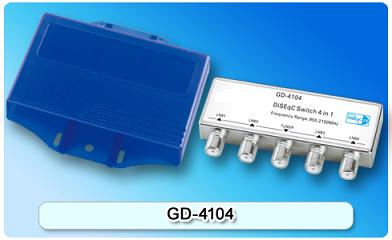

150558. GD-4104 Hi-isolation and short-circuit protection 4 in 1 DiSEqC switch

Zinc die-cast housing, nickel-plated; Excellent quality component, professional circuit design and low loss; Excellent quality chip, professional program design and compatible with more types of satellite receiver; Can work normally 30dB isolation and minimize the mutual interference; Short-circuit protection design ensures more secure usage.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Excellent quality component, professional circuit design and low loss
Excellent quality chip, professional program design and compatible with more types of satellite receiver
Can work normally 30dB isolation and minimize the mutual interference
Short-circuit protection design ensures more secure usage
DiSEqC 2.0, supporst bi-direction DiSEqC full control function
Utilize one coaxial cable to transmit control and satellite signal simultaneously
Outdoors under unsheltered circumstance, exquisite plastic case shell attached
Support DiSEqC “standby” command

Specifications

Item	Specification	Item	Specification
Frequency Range	950-2400(MHz)	Normal Working Voltage	12-20(V)
Insertion Loss	3(dB)	DC Power Consumption	10(mA)
Isolation	30(dB)	DC Max Power Passing	500(mA)
Return Loss	8(dB)	Impedance(all ports)	75(Ω)
