150503. GD-41NA
  • 150503. GD-41NA

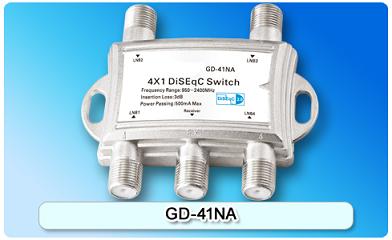

150503. GD-41NA

Zinc die-cast housing, nickel-plated; Excellent quality component , professional circuit design and low loss; Excellent quality chip , professional program design and compatible with more types of satellite receiver; DiSEqC 2.0 , supports bi-directional DiSEqC full control functions; Select one of two satellite signals through; DiSEqC commands supplied from.
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Excellent quality component , professional circuit design and low loss
  • Excellent quality chip , professional program design and compatible with more types of satellite receiver
  • DiSEqC 2.0 , supports bi-directional DiSEqC full control functions
  • Select one of two satellite signals through DiSEqC commands supplied from satellite receiver
  • Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously
  • Support DiSEqC “standby” command

Specifications

Item

Specification

Item

Specification

Frequency Range

950-2400(MHz)

Normal Working Voltage

12-20(V)

Insertion Loss

3(dB)

DC Power Consumption

10(mA)

Isolation

20(dB)

DC Max Power Passing

500(mA)

Return Loss

8(dB)

Impedance(all ports)

75(Ω)
