150621. MS-4401C 4 in 4 Multiswitch, 4 In Series
  • 150621. MS-4401C 4 in 4 Multiswitch, 4 In Series

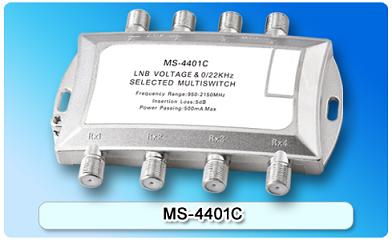

150621. MS-4401C 4 in 4 Multiswitch, 4 In Series

Zinc die-cast housing, nickel-plated; Excellent quality component, professional circuit design and low loss; 13/18V、0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port; Capable of connecting four SATV signals simultaneously; Four SATV signals switched through 13/18V、0/22KHz.
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Excellent quality component, professional circuit design and low loss
  • 13/18V、0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port
  • Capable of connecting four SATV signals simultaneously
  • Four SATV signals switched through 13/18V、0/22KHz
  • Distributed into four subscribers to use simultaneously and no mutual interference
  • Applicable to multi-satellite and multi-receiver usage
  • Built-in switching circuit for power from receiver, can work without external power adaptor

Specifications

Item Specification Item Specification
Frequency Range 950-2150 (MHz) Output Level 95(dBuV )
Insertion loss 5(dB) Normal Working Voltage 12-20(V)
Isolation Between Outputs 25(dB) DC Power Consumption 40(mA)
Switching Isolation Input 28(dB) DC Max Power Passing 500(mA)
Return Loss Inputs 12(dB) Impedance(all ports) 75(Ω)
Return Loss Outputs 8(dB)
Switching Voltage/Signal : 13/18V、0/22KHz
Connectors:“F” type female
