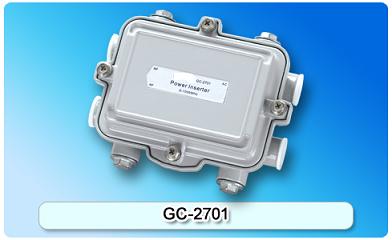

151601. GC-2701 Power Inserter

Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft; Aluminum alloy housing with anti-corrosive paint and neoprene weather sealed; With isolation wire netting mounting to avoid RFI and good screening factor; Super-compact size, light weight and easy to attach.

Detailed description

Features:

Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft
Aluminum alloy housing with anti-corrosive paint and neoprene weather sealed
With isolation wire netting mounting to avoid RFI and good screening factor
Super-compact size, light weight and easy to attach
75Ohm，5/8〃 -24UNEF Available to configure a KS-F rotary joint
Available to supply 5-1000MHz
Power passing all ports: 10A AC/DC

Specifications

Frequency Range (MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-40	≤0.8	≥60	≥22
40-470	≤0.8	≥60	≥20
470-860	≤1.0	≥50	≥18
860-1000	≤1.0	≥50	≥16
