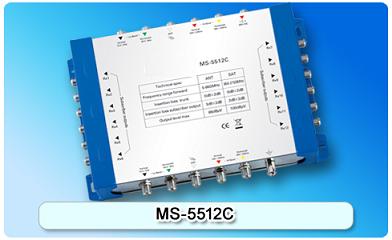

150645. MS-5512C Cascadable Multiswitch of 5 in 12, 5 In Series

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient; Excellent quality component, professional amplification design and low loss; External 20V 700mA DC power offering more stable operation; 13/18V 0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port.

Detailed description

Features:

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient
Excellent quality component, professional amplification design and low loss
External 20V 700mA DC power offering more stable operation
13/18V 0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port
Capable of connecting four SATV signals, one ANT signal or FM broadcast simultaneously
Four SATV signals switched through 13/18V 0/22KHz from satellite receiver
Five input signals cascadable and distributed into twelve subscribers to use simultaneously and no mutual interference
Power indicator design ensures more secure usage
Supports multi-satellite 、 multi-receiver and cascadable usage

Specifications

Item	Specification	Item	Specification
Frequency Range ANT	5-860(MHz)	Return Loss SAT Inputs	10(dB)
Frequency Range SAT	950-2150(MHz)	Return Loss ANT Inputs	12(dB)
Insertion Loss ANT	5(dB)	Return Loss Output	8(dB)
Insertion Loss SAT	4(dB)	Output Level ANT	88(dBuV)
Insertion Loss Trunk	0(dB)	Output Level SAT	100(dBuV)
Isolation In-In SAT	25(dB)	Normal Working Voltage	12-20(V)
Isolation In-In SAT/ANT	25(dB)	DC Power Consumption	100(mA)
Isolation Between Outputs	25(dB)	Supply Voltage(VDC)	20V（±1）700mA
Switching Isolation SAT Inputs	28(dB)	Temperature Range	-20℃-60℃
Cross Isolation	25(dB)	Impedance(all ports)	75(Ω)

Switching Voltage、Signal : 13/18V 、0/22KHz
Connectors:“F” type female
