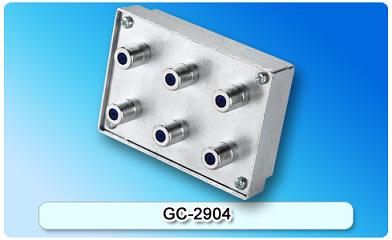

151708. GC-2904 45-1000MHz 4-way Tap

Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft; Zinc die-cast housing, tin-plated; screening factor：45-1000MHz≥100dB; Super-compact size, light weight and easy to attach; All ports F-(f)connector,75 Ohm.

Detailed description

Features:

Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft
Zinc die-cast housing, tin-plated
screening factor：45-1000MHz≥100dB
Super-compact size, light weight and easy to attach
All ports F-(f)connector,75 Ohm
Available to supply 45-1000MHz
Power passing IN port to OUT port: 6A AC/DC

Specifications

Item	Frequency Range	11	14	17	20	23	27
Insertion Loss (dB)	40-470(MHz)	3.8	2.8	2.2	2	1.5	1.2
	470-860(MHz)	4.2	2.8	2.5	2.2	1.8	1.5
	860-1000(MHz)	4.5	3.2	2.8	2.5	2	1.8
Tap Loss Tolerance (dB)	40-470(MHz)	±1.0
	470-860(MHz)	±1.5
	860-1000(MHz)	±1.5
Mutual Isolation (dB)	40-470(MHz)	28	28	28	28	28	28
	470-860(MHz)	25	25	25	25	25	25
	860-1000(MHz)	25	25	25	25	25	25
Reverse Isolation (dB)	40-470(MHz)	28	28	35	35	35	35
	470-860(MHz)	26	26	28	28	28	28
	860-1000(MHz)	23	23	25	25	25	25
Return Loss (dB)	40-470(MHz)	20	20	20	20	20	20
	470-860(MHz)	18	18	18	18	18	18
	860-1000(MHz)	18	18	18	18	18	18
