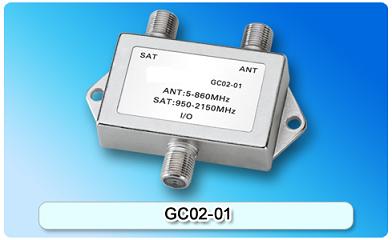

152301. GC02-01 SAT /ANT Diplexer

Zinc die-cast housing, tin-plated; Light weight and compact size; Frequency range:5-2150MHz; F-female connector 75Ohm; DC power passing : 24V DC 500mA(MAX).

Detailed description

Features:

Zinc die-cast housing, tin-plated
Light weight and compact size
Frequency range:5-2150MHz
F-female connector 75Ohm
DC power passing : 24V DC 500mA(MAX)

Specifications

Item	Frequency Range(MHz)	Insertion Loss(dB)	Return Loss(dB)
IN-ANT	5-862	≤20.0	≥10.0
IN-ANT	950-2150	≥20.0
IN-SAT	5-862	≥20.0
IN-SAT	950-2150	≤3.0
