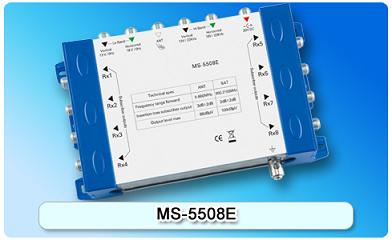

150640. MS-5508E End-type 5 in 8 Multiswitch, 5 In Series
  • 150640. MS-5508E End-type 5 in 8 Multiswitch, 5 In Series

150640. MS-5508E End-type 5 in 8 Multiswitch, 5 In Series

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient; Excellent quality component, professional amplification design and low loss; External 20V 700mA DC power offering more stable operation; 13/18V 0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port.
Detailed description

Features:

  • Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient
  • Excellent quality component, professional amplification design and low loss
  • External 20V 700mA DC power offering more stable operation
  • 13/18V 0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port
  • Capable of connecting four SATV signals, one ANT signal or FM broadcast simultaneously
  • Four SATV signals switched through 13/18V 0/22KHz from satellite receiver
  • Distributed into 8 subscribers to use simultaneously and no mutual interference
  • Power indicator design ensures more secure usage
  • Supports multi-satellite、multi-receiver and for last stage usage

Specifications

Item

Specification

Item Specification
Frequency Range ANT 5-860(MHz) Return Loss ANT Input 12(dB)
Frequency Range SAT 950-2150 (MHz) Return Loss Outputs 8(dB)
Insertion Loss ANT 5(dB) Output Level ANT 88(dBuV)
Insertion Loss SAT 4(dB) Output Level SAT 100(dBuV)
Isolation In-In SAT 25(dB) Normal Working Voltage 12-20 (V)
Isolation In-In SAT/ANT 25(dB) DC Power Consumption 100(mA)
Isolation Between Outputs 25(dB)

Supply Voltage(VDC)

20V(±1)700mA

Switching Isolation SAT Inputs 28(dB) Temperature Range -20℃-60℃
Return Loss SAT Inputs 10(dB) Impedance(all ports) 75(Ω)
Switching Voltage、Signal : 13/18V 、0/22KHz
Connectors:“F” type female
