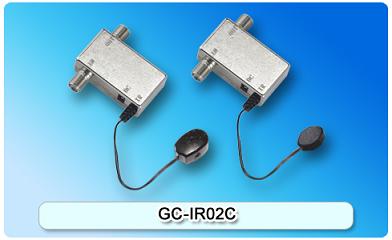

151214. GC-IR02C IR Signal Remote Extender
Features:
- Applicable to home cable TV network
- Signal can pass through several splitters or couplers
- FSK modulation/demodulation
-
Suitable for RF transmission
Specifications
|
Item |
Specification |
Item |
Specification |
|
Modulation |
FSK |
Center Frequency |
27.045MHz/27.145MHz |
|
Carrier Frequency |
38KHz |
Operating Temperature |
0℃~+50℃ |
|
TRANSMITTER |
RECEIVER |
||
|
Item |
Specification |
Item |
Specification |
|
Output Power |
-15dBm（Typical） |
Center Frequency |
455KHz |
|
Current Consumption |
10mA（Typical） |
Insertion Loss |
1.5dB@860MHz 3dB@2.3GHz |
|
L.O. Leakage To TV Port |
＜-80dBm |
IR Emitting Range |
5m（Typical） |
|
Insertion Loss |
＜3dB@860MHz |
Sensitivity |
＜-90dBm |
|
Supply Voltage |
9V |
Current Consumption |
20mA Typ |
