150648. MS-5516C Cascadable Multiswitch of 5 in 16, 5 In Series
  • 150648. MS-5516C Cascadable Multiswitch of 5 in 16, 5 In Series

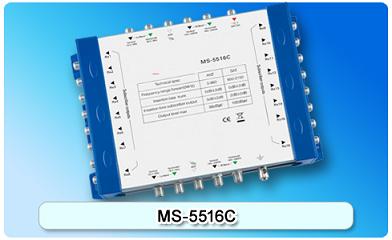

150648. MS-5516C Cascadable Multiswitch of 5 in 16, 5 In Series

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient; Excellent quality component, professional amplification design and low loss; External 20V 700mA DC power offering more stable operation; 13/18V 0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port.
Detailed description

Features:

  • Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient
  • Excellent quality component, professional amplification design and low loss
  • External 20V 700mA DC power offering more stable operation
  • 13/18V 0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port
  • Capable of connecting four SATV signals, one ANT signal or FM broadcast simultaneously
  • Four SATV signal switched through 13/18V 0/22KHz from satellite receiver
  • Five input signals cascadable and distributed into sixteent subscribers to use simultaneously and no      mutual interference
  • Power indicator design ensures more secure usage
  • Supports multi-satellite、multi-receiver and cascadable usage

Specifications

Item

Specification

Item Specification
Frequency Range ANT 5-860(MHz)

Return Loss SAT Inputs

10(dB)
Frequency Range SAT 950-2150(MHz) Return Loss ANT Inputs 12(dB)
Insertion Loss ANT 5(dB)

Return Loss Output

8(dB)
Insertion Loss SAT 4(dB)

Output Level ANT

88(dBuV)
Insertion Loss Trunk 0(dB)

Output Level SAT

100(dBuV)
Isolation In-In SAT 25(dB) Normal Working Voltage 12-20(V)
Isolation In-In SAT/ANT 25(dB)

DC Power Consumption

100(mA)
Isolation Between Outputs 25(dB) Supply Voltage(VDC) 20V(±1)700mA
Switching Isolation SAT Inputs 28(dB)

Temperature Range

-20℃-60℃
Cross Isolation 25(dB)

Impedance(all ports)

75(Ω)
Switching Voltage、Signal : 13/18V 、0/22KHz
Connectors:“F” type female
