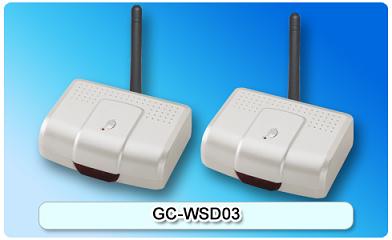

151207. GC-WSD03 Wireless Digital AV Sender

2.4GHz digital Wireless A/V Sender With infrared control return function; Low power consumption; Support video transmission of NTSC or PAL and stereo audio transmission; Transmission distance up to 100 meters under unobstructed circumstance; Ideal for microwave anti-jamming capability.

Detailed description

Features:

2.4GHz digital Wireless A/V Sender
With infrared control return function
Low power consumption
Support video transmission of NTSC or PAL and stereo audio transmission
Transmission distance up to 100 meters under unobstructed circumstance
Ideal for microwave anti-jamming capability

Specifications

TRANSMITTER		RECEIVER
Item	Specification	Item	Specification
Operation Frequency	2400 ~ 2483.5MHz	Operation Frequency	2400 ~ 2483.5MHz
Supply Voltage	9 V	Supply Voltage	9 V
Current Consumption	350mA	Current Consumption	300mA
Operating Temperature	-10~+60℃	Operating Temperature	-10~+60℃
Video in System	PAL/NTSC	Video in System	PAL/NTSC
Video Input Level	1VP-P, Typ.	Video Input Level	1VP-P, Typ.
Audio Input Level	1VP-P, Typ.	Audio Input Level	1VP-P, Typ.
Transmitter Power	18dBm	Transmitter Power	-78dBm@1MHz
IR Carrier Frequency	38KHz	IR Carrier Frequency	>8m
