150302. HDTR 872
  • 150302. HDTR 872

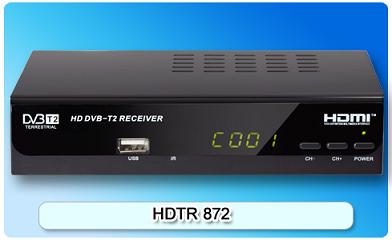

150302. HDTR 872

Parental Control, Teletext, EPG supported, 720p, 1080i, 1080p, mp3, aac; Fully Compliant with DVB-T2 and DVB-T; Support MEPG-4 AVC(H.264) MP/HP@L4.1; Support MEPG-2 MP@HL/ML; HE AAC5.1, HE AAC+, DD, DD+ (Dolby is optional); Multi Bandwidth: 6M 7M & 8M; Supports 64QAM, 16QAM and QPSK (4QAM) sub-carriers; Video decoding and output: 1080p/1080i/720p Analog Video output: PAL/NTSC; Conversion between SD programs and HD programs; USB2.0 supported for upgrade, PVR and time shifting; SupportParental Control,Teletext,Subtitle; Aspect ratio: 4:3/16:9,By Pan & Scan and Letter Box conversion; Electronic program guide (EPG); Software upgrade (OAD or USB); 32 bits true color OSD; Program editor; Support Favorite Group.
Detailed description

Features:

  • Parental Control, Teletext, EPG supported, 720p, 1080i, 1080p, mp3, aac
  • Fully Compliant with DVB-T2 and DVB-T
  • Support MEPG-4 AVC(H.264) MP/HP@L4.1
  • Support MEPG-2 MP@HL/ML
  • HE AAC5.1, HE AAC+, DD, DD+ (Dolby is optional)
  • Multi Bandwidth: 6M 7M & 8M
  • Supports 64QAM, 16QAM and QPSK (4QAM) sub-carriers
  • Video decoding and output: 1080p/1080i/720p
  • Analog Video output: PAL/NTSC
  • Conversion between SD programs and HD programs
  • USB2.0 supported for upgrade, PVR and time shifting
  • SupportParental Control,Teletext,Subtitle
  • Aspect ratio: 4:3/16:9,By Pan & Scan and Letter Box conversion
  • Electronic program guide (EPG)
  • Software upgrade (OAD or USB)
  • 32 bits true color OSD
  • Program editor
  • Support Favorite Group

Specifications

CPU and Memory

CUP 7T01
DDR2 DDR2 512Mbit(64MByte)
Flash 32Mbit(4MByte)

Tuner

Connector Type RF In/ANT In(IEC-Female),RF LOOP/ANT LOOP(IEC-Male)
Input Frequency (UHF)470∽866MHz, (VHF)170∽230MHz
Bandwidth 6, 7, 8MHz
Signal Input Level  -78∽-20dBm
Input Impedance 750hm
Active Antenna 5V(On/Off), Imax=100mA
Demodulation scheme QPSK, 16-QAM, 64-QAM, 256-QAM
FFT 1K, 2K, 4K, 8K, 16K, 32K
FECE mode 1/2, 2/3, 3/4, 3/5, 4/5, 5/6
Guard Interval 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256

Software Function

OS ECOS
EPG Fully support to 7 days Electronic Program Guide(EPG)
Video Decoding MPEG1, MPEG2, MPEG4, H264, VC-1, MOTION JPEG, MPG, MP4
Video Format avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts
Audio  Decoding MPEG-1/2/3/4, wma
Audio Format mp3, wma, agg
Picture Format JPEG, BMP, PNG
Video Resolution 480i, 480P, 576i, 576P, 720P, 1080i, 1080P
Video Aspect Ratio 4:3(LB/SCAN), 16:9(LB/FIT)
Analog Video System PAL, NTSC, SECAM
OSD Language nine kinds of language
LCN Sort Support Logic Channel Number(LCN)
Teletext VBI insertion for Teletext,CC and WSS
Time Shift Support Time Shift

Hardware  Interface

Video Output RCA(CVBS, L/R),  HDMI Interface
SPDIF Output None
USB Interface 1*USB2.0
Button POWER, CH-, CH+
Power supply AC Input 100~240V 50Hz, 10WMax
