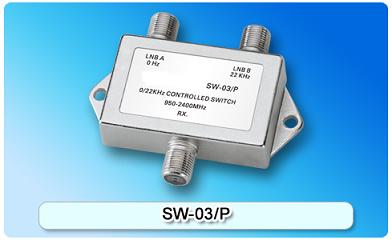

150695. SW-03/P 0/22KHz Switch, 0-22KHz Switch

Zinc die-cast housing, nickel-plated Excellent quality component , professional circuit design and low loss; 0/22KHz signal processed by professional method and compatible with more types of satellite receiver; Select one of two satellite signals through 0/ 22KHz signal supplied from satellite receiver.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Excellent quality component , professional circuit design and low loss
0/22KHz signal processed by professional method and compatible with more types of satellite receiver
Select one of two satellite signals through 0/ 22KHz signal supplied from satellite receiver
Utilize one coaxial cable to transmit control signal and satellite signal simultaneously

Specifications

Item	Specification	Item	Specification
Frequency Range	950-2400(MHz)	Normal Working Voltage	12-20(V)
Insertion Loss	3(dB)	DC Power Consumption	10mA
Isolation	20(dB)	DC Max Power Passing	500mA
Return Loss	8(dB)	Impedance(all ports)	75Ω

Connectors:“F”type female
