150825. GS05-06 SAT 6-Way Splitter
  • 150825. GS05-06 SAT 6-Way Splitter

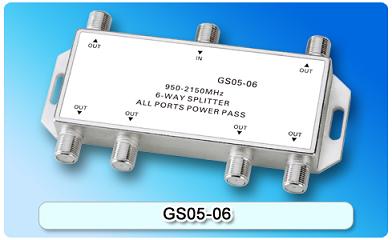

150825. GS05-06 SAT 6-Way Splitter

Zinc die-cast housing, nickel-plated; Easy installation with two edge hole sites; Screening factor: 950-2150 MHz≥100dB; Low insertion loss, high isolation, perfect performance index; Indoor using; Power passing-24V 0.8A(MAX.).
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Easy installation with two edge hole sites
  • Screening factor: 950-2150 MHz≥100dB
  • Low insertion loss, high isolation, perfect performance index
  • Indoor using
  • Power passing-24V 0.8A(MAX.)
  • All ports F-(f) connector,75Ohm

Specifications

Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

950-1750

≤12.5

≥20

≥12

1750-2150

≤15.5

≥20

≥10
