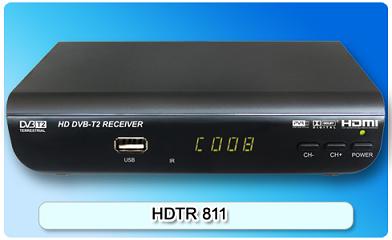

150312. HDTR 811

Full HD output in 720p, 1080i, 1080p; Multi-lingual OSD and user-friendly UI; DVB subtitle supported; Parental Control, Teletext, EPG supported; Favorite Group supported; Less than 0.5 watt in standby.
Detailed description

Features:

  • Full HD output in 720p, 1080i, 1080p
  • Multi-lingual OSD and user-friendly UI
  • DVB subtitle supported
  • Parental Control, Teletext, EPG supported
  • Favorite Group supported
  • Less than 0.5 watt in standby
  • Support movie files with MPEG1/MPEG2/MPEG4/H264/VC-1/MOTION JPEG(.flv/.rm/.rmvb/.avi/.mpg/.dat/.vob/.div/.mov/.mkv/.mipeg/.ts/.trp),so on
  • Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a)

Specifications

DVB-T2 ANT Input/Demodulation

Connector Type IEC-Female * 1 for ANT IN, IEC-Male * 1 for ANT OUT
Input Frequency (UHF)470∽866MHz,(VHF)170∽230MHz
Bandwidth 6,7,8MHz
Signal Input level -78 ∽ -20dBm
Input Impedance 75Ohm
ANT Power 5V(On/Off), Imax=100mA
Demodulation Scheme QPSK, 16-QAM, 64-QAM, 256-QAM
Demodulation Type OFDM, fully compliant with DVB-T2 Standard

Media Features

Picture JPEG,BMP,PNG

Power Supply

AC Input 100-240V 50Hz
Power Consumption 10Wmax

Memory

Flash 32Mbit
DDRII Memory 512Mbit

Physical Characteristics

Physical Size 168mm * 102mm * 35mm

Front Panel

Key POWER, CH+, CH-
Indicator LED Indicator for Power On/Off
 Display 4 Digits 7-segment LED display
Remote Control Input Infra-red receiver
Interface  1 * USB2.0 interface

Rear Panel

Connector 2 * IEC connector for ANT IN and ANT OUT
1 * HDMI 1.3 interface, up to 1080p
1 * AV RCA3(CVBS, L/R)
1 * COAXIAL

Remote Specifications

Battery (AAA 1.5V)*2
Operation Distance 8m Min.(front distance from receiver)
Operation Angle Range ±45°(horizontal),±20°(vertical)
