151439. GC-1416 5-1000MHz 16-way Splitter
  • 151439. GC-1416 5-1000MHz 16-way Splitter

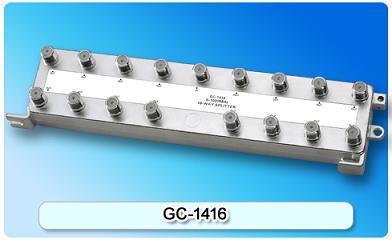

151439. GC-1416 5-1000MHz 16-way Splitter

Zinc die-cast housing, tin-plated; Screening factor: 5-1000MHz≥100dB; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm; Bright tin finish, solder or glue sealed optional.
Detailed description

Features:

  • Zinc die-cast housing, tin-plated
  • Screening factor: 5-1000MHz≥100dB
  • Low insertion loss,high return loss and isolation
  • Micro-strip circuit design and perfect performance index
  • All ports F-(f)connector,75 Ohm
  • Bright tin finish, solder or glue sealed optional

Specifications

Frequency Range(MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤14.5

≥25

≥20

40-470

≤14.5

≥25

≥20

470-860

≤15.5

≥25

≥18

860-1000

≤16.0

≥22

≥17
