150530. GD-61D
  • 150530. GD-61D

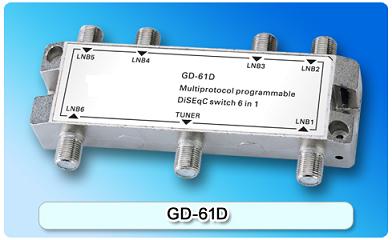

150530. GD-61D

Zinc die-cast housing, nickel-plated; Excellent quality component , professional circuit design and low loss; Excellent quality chip , professional program design and compatible with more types of satellite receiver; DiSEqC 1.0、1.1、1.2、2.0、2.1、2.2,etc individual and combined control functions; support secondary programming, more powerful functions.
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Excellent quality component , professional circuit design and low loss
  • Excellent quality chip , professional program design and compatible with more types of satellite receiver
  • DiSEqC 1.0、1.1、1.2、2.0、2.1、2.2,etc individual and combined control functions; support secondary   programming, more powerful functions
  • Six satellite signals switched through DiSEqC commands supplied from satellite receiver
  • Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously

Specifications

Item

Specification

Item

Specification

Frequency Range

950-2150(MHz)

Normal Working Voltage

12-20(V)

Insertion Loss

3(dB)

DC Power Consumption

10(mA)

Isolation

20(dB)

DC Max Power Passing

500(mA)

Return Loss

8(dB)

Overload Protection Current

600(mA)

Operating Temperature

-40℃ ~85℃

Impedance(all ports)

75(Ω)
