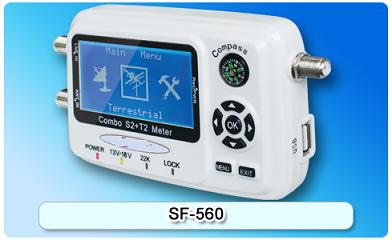

151114. SF-560 Digital Satellite Finder

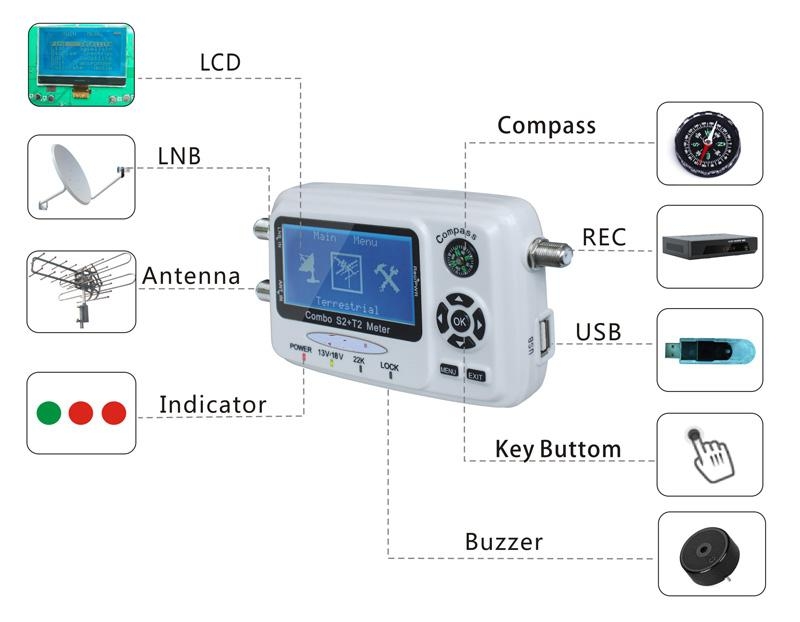

Edit transponder, down frequency, LO frequency of LNB, symbol rate, etc. Support UASLS. Update data through USB. Provide spectrum display. Support DVB-S、 DVB-S2、DVB-T and DVB-T2. Support QPSK、8PSK、16APSK、32APSK and 16QAM、64QAM、256QAM
Detailed description

Specifications

Item

Specification

S2 Frequency range 950~2150MHz
Signal Level -65 ~ -25dBm
Impedance 75Ω
Symbol rate 1Msps~45Msps
Demodulation

DVB-S: QPSK

DVB-S2: 8PSK,16APSK,32APSK
22KHz Tone Supported
DiSEqC1.0 Supported
USALS Supported
T2 Frequency range

170 ~ 230MHz (VHF)

470 ~ 862MHz (UHF)
Impedance 75Ω
Signal Level -78 ~ -10dBm
Demodulation Scheme

DVB-T:QPSK,16QAM,64QAM

DVB-T2: 16QAM,64QAM,256QAM
Bandwidth 6MHz、7MHz、8MHz
Power supply Switching Power input AC110~240V  50Hz/60Hz
Switching Power output 18V DC  1000mA
Others Connector F type
USB port Supported
Operation temperature -10℃ ~ +50℃
