151205. GC-5G8A 5.8G Wireless A/V Sender
  • 151205. GC-5G8A 5.8G Wireless A/V Sender

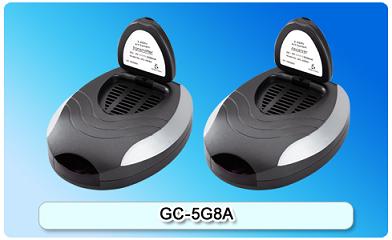

151205. GC-5G8A 5.8G Wireless A/V Sender

5.8GHz wireless transmitter and receiver with 8 selectable channels (Dip Switch); 433.92MHz infrared control radio return feature; Antenna (5.8GHz) is embedded into housing; Compatible with camcorder or CMOS camera application; Low power consumption.
Detailed description

Features:

  • 5.8GHz wireless transmitter and receiver with 8 selectable channels (Dip Switch)
  • 433.92MHz infrared control radio return feature
  • Antenna (5.8GHz) is embedded into housing
  • Compatible with camcorder or CMOS camera application
  • Low power consumption
  • NTSC/PAL video format available
  • The equipment realizes that several televisions share one set-top box or DVD
  • Range up to 100m(L.O.S.)
  • Ideal for microwave anti-jamming capability

Specifications

TRANSMITTER

RECEIVER

Item

Specification

Item

Specification

Frequency

5725MHz~5865MHz

Frequency

5725MHz~5865MHz

Sender Power

17dBm(Typical)

Receiver Sensitivity

-85dBm(Minimum)

Channel Number

8

Channel Number

8

Frequency Stability

±100 KHz(Typical)

L.O. Stability

±100 KHz(Typical)

Video Input Level

1 Vp-p(Typical)

Video Output Level

1 Vp-p(Typical)

Audio Input Level

1 Vp-p(Typical)

Audio Output Level

1 Vp-p(Typical)

Supply Voltage

9V

Supply Voltage

9V

Current Consumption

500 mA(Typical)

Current Consumption

500 mA(Typical)

Operating Temperature

-10℃~ +60℃

Operating Temperature

-10℃~ +60℃

Infrared Remote Control Radio Return

Frequency

433.92MHz

Receiver Sensitivity

-100dBm

Modulation/Demodulation

ASK

Sender Power

10dBm(Typical)
