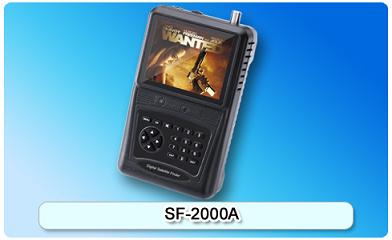

151113. SF-2000A Digtal Satellite Finder
Watch the TV program in full color with the LCD;
OSD of user interface;
Support DiSEqC1.0;
Set up LO of LNB and parameters of SATV , find satellite signal accurately;
Auto Calculate Angle of AZ,EL.
Detailed description
Features:
- Watch the TV program in full color with the LCD
- OSD of user interface
- Support DiSEqC1.0
- Set up LO of LNB and parameters of SATV , find satellite signal accurately
-
Auto Calculate Angle of AZ,EL
Specifications
| Input signal | Signal processing | ||
| Frequency range | 950MHz~2150MHz | Demodulation |
QPSK |
| Signal level | -25~-65dBm | Symbol rate |
2~45Mbps |
| Impedance | 75Ω | 22KHz tone | Supported |
| DiSEqC 1.0 | Supported | ||
| Others | Power supply | ||
| Dimensions | 160×97×47(mm) | Power for LNB | 13V ， 18V,<500mA |
| Operating temperature | 0℃~ +40℃ | DC power supply | DC12.6V battery |
| LCD display | 3.5 inch | Power charger input | AC110V/60Hz/220V/50Hz±10% |
| Audio output | built-in loudspeaker | Power charger output | 12.6V DC 2000mA |
| Input connector | F type | Operating time of battery | Last for 2-3 hours (fully charged) |
