151216. GC-IR04C IR Signal Remote Extender
  • 151216. GC-IR04C IR Signal Remote Extender

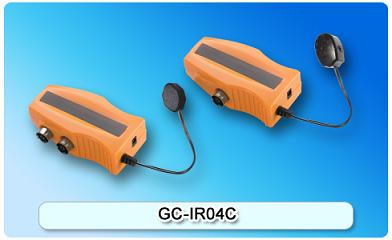

151216. GC-IR04C IR Signal Remote Extender

Applicable to home cable TV network; FSK modulation/demodulation; Signal can pass through several splitters or couplers; Suitable for RF transmission.
Detailed description

Features:

  • Applicable to home cable TV network
  • FSK modulation/demodulation
  • Signal can pass through several splitters or couplers
  • Suitable for RF transmission

Specifications

Item

Specification

Item

Specification

Modulation

FSK

Center Frequency

27.045MHz/27.145MHz

Carrier Frequency

38KHz

Operating Temperature

0℃~+50℃

TRANSMITTER

RECEIVER

Item

Specification

Item

Specification

Output Power

-15dBm (Typical)

Center Frequency

455KHz

Current Consumption

10mA (Typical)

Insertion Loss

3dB@860MHz 3dB@2.3GHz

L.O. Leakage To TV Port

<-80dBm

IR Emitting Range

5m(Typical)

Insertion Loss

<3dB@860MHz

Sensitivity

<-90dBm

Supply Voltage

9V

Current Consumption

20mA Typ
