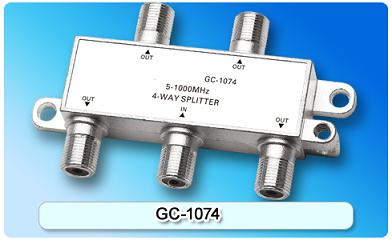

151418. GC-1074 5-1000MHz 4-way Splitter

Zinc die-cast housing, tin-plated; Light weight and compact size; Screening factor: 5-1000MHz≥120dB; Low insertion loss, high isolation, perfect performance index; All ports F-(f)connector,75 Ohm.

Detailed description

Features:

Zinc die-cast housing, tin-plated
Light weight and compact size
Screening factor: 5-1000MHz≥120dB
Low insertion loss, high isolation, perfect performance index
All ports F-(f)connector,75 Ohm

Specifications

Frequency Range (MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-40	≤7.0	≥30	≥20
40-470	≤7.2	≥30	≥20
470-860	≤7.6	≥28	≥20
860-1000	≤8.0	≥25	≥20
