150662. MS-9924C Cascadable Multiswitch of 9 in 24, 9 In Series
  • 150662. MS-9924C Cascadable Multiswitch of 9 in 24, 9 In Series

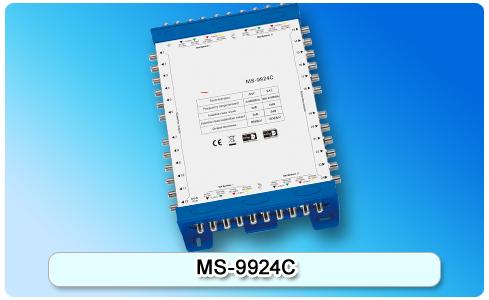

150662. MS-9924C Cascadable Multiswitch of 9 in 24, 9 In Series

C means Cascade type, E means End type. Power supplied by satellite receiver and external power supply; 8 SAT inputs + 1 ANT input, 24 output; Cascade type supports; 8SAT + 1ANTconnect with next stage; SAT IF selected by 13/18V, 0-22KHz and DiSEqC 1.0/2.0 commands.
Detailed description

Features:

  • C means Cascade type, E means End type.
  • Power supplied by satellite receiver and external power supply.
  • 8 SAT inputs + 1 ANT input, 24 output. Cascade type supports
  • 8SAT + 1ANTconnect with next stage.
  • SAT IF selected by 13/18V, 0-22KHz and DiSEqC 1.0/2.0 commands.

Specifications

Item

Specification

Item

Specification

Frequency Range ANT

5-860(MHz)

Return Loss SAT Inputs

10(dB)

Frequency Range SAT

950-2150(MHz)

Return Loss ANT Input

12(dB)

Insertion Loss ANT

6(dB)

Return Loss Outputs

8(dB)

Insertion Loss SAT

5(dB)

Output Level ANT

88(dBuV)

Insertion Loss Trunk(for cascadable type)

ANT.: 6(dB) SAT.: 7(dB)

Output Level SAT

100(dBuV)

Isolation In-In SAT

25(dB)

Normal Working Voltage

12-20(V)

Isolation In-In SAT/ANT

25(dB)

DC Power Consumption

200(mA)

Isolation Between Outputs

25(dB)

Supply Voltage(VDC)

20V(±1)2000mA

Switching Isolation SAT Inputs

28(dB)

Temperature Range

-20℃-60℃

Cross Isolation(for cascadable type)

25(dB)

Impedance(all ports)

75(Ω)



Switching Voltage、Signal : 13/18V 、0/22KHz、DiSEqC 1.0,2.0
Connectors:“F” type female
