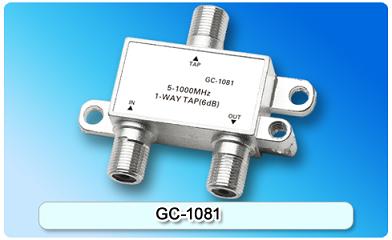

151513. GC-1081 5-1000MHz 1-way Tap
  • 151513. GC-1081 5-1000MHz 1-way Tap

151513. GC-1081 5-1000MHz 1-way Tap

Zinc die-cast housing, tin-plated; Screening factor: 5-1000MHz≥120dB; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75Ohm.
Detailed description

Features:

  • Zinc die-cast housing, tin-plated
  • Screening factor: 5-1000MHz≥120dB
  • Low insertion loss,high return loss and isolation
  • Micro-strip circuit design and perfect performance index
  • All ports F-(f)connector,75Ohm

Specifications

Item

Frequency Range

6

8

10

12

14

16

18

20

22

24

27

30

Insertion Loss
(dB)

5-40(MHz)

2.5

2

2

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

40-470(MHz)

2.8

2

2

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

470-860(MHz)

3

2.5

2.5

1.5

1.2

1

1

1

1

1

1

1

860-1000(MHz)

3

2.5

2.5

1.5

1.2

1

1

1

1

1

1

1

Tap Loss Tolerance
(dB)

5-40(MHz)

±1.0

40-470(MHz)

±1.0

470-860(MHz)

±1.2

860-1000(MHz)

±1.5

Reverse Isolation
(dB)

5-40(MHz)

25

25

28

28

30

30

30

30

35

35

40

40

40-470(MHz)

25

25

28

28

28

28

30

30

35

35

35

35

470-860(MHz)

22

22

25

25

25

25

28

28

30

30

30

30

860-1000(MHz)

22

22

25

25

25

25

25

27

28

28

28

28

Return Loss
(dB)

5-40(MHz)

20

20

20

20

20

20

20

20

20

20

20

20

40-470(MHz)

20

20

20

20

20

20

20

20

20

20

20

20

470-860(MHz)

18

18

18

18

18

18

18

18

18

18

18

18

860-1000(MHz)

18

18

18

18

18

18

18

18

18

18

18

18
