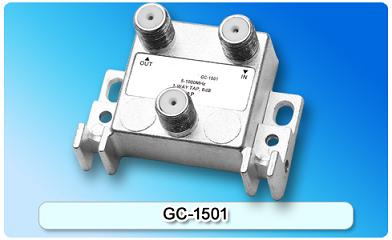

151531. GC-1501 5-1000MHz 1-way Tap

Zinc die-cast housing, tin-plated; Screening factor: 5-1000MHz≥100dB; Easy installation; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm.

Detailed description

Features:

Zinc die-cast housing, tin-plated
Screening factor: 5-1000MHz≥100dB
Easy installation
Low insertion loss,high return loss and isolation
Micro-strip circuit design and perfect performance index
All ports F-(f)connector,75 Ohm

Specifications

Item	Frequency Range	6	8	10	12	14	16	18	20	22	24	27	30
Insertion Loss (dB)	5-40(MHz)	2.5	2	2	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
	40-470(MHz)	2.8	2	2	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
	470-860(MHz)	3	2.5	2.5	1.5	1.2	1	1	1	1	1	1	1
	860-1000(MHz)	3	2.5	2.5	1.5	1.2	1	1	1	1	1	1	1
Tap Loss Tolerance (dB)	5-40(MHz)	±1.0
	40-470(MHz)	±1.0
	470-860(MHz)	±1.5
	860-1000(MHz)	±1.5
Reverse Isolation (dB)	5-40(MHz)	25	25	28	28	30	30	30	30	35	35	40	40
	40-470(MHz)	25	25	28	28	28	28	30	30	35	35	40	40
	470-860(MHz)	22	22	25	25	25	25	28	28	32	32	38	38
	860-1000(MHz)	22	22	25	25	25	25	25	27	28	28	28	28
Return Loss (dB)	5-40(MHz)	20	20	20	20	20	20	20	20	20	20	20	20
	40-470(MHz)	20	20	20	20	20	20	20	20	20	20	20	20
	470-860(MHz)	18	18	18	18	18	18	18	18	18	18	18	18
	860-1000(MHz)	18	18	18	18	18	18	18	18	18	18	18	18
