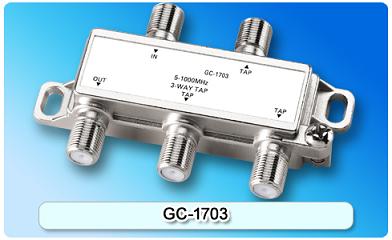

151539. GC-1703 5-1000MHz 3-way Tap

Zinc die-cast housing, nickel-plated; Screening factor: 5-1000MHz≥100dB; Easy installation with two edge hole sites; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm.
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Screening factor: 5-1000MHz≥100dB
  • Easy installation with two edge hole sites
  • Low insertion loss,high return loss and isolation
  • Micro-strip circuit design and perfect performance index
  • All ports F-(f)connector,75 Ohm

Specifications

Item

Frequency Range

10 12 14 16 18 20 22 24 27 30
Insertion Loss
(dB)
5-40(MHz) 3.5 3 2.5 2 2 1.2 1.2 1 1 1
40-470(MHz) 3.5 3.5 2.5 2 2 1.2 1.2 1 1 1
470-860(MHz) 3.8 3.5 2.8 2.2 2.2 1.5 1.5 1.2 1.2 1.2
860-1000(MHz) 4.5 4 3 2.5 2.2 1.5 1.5 1.2 1.2 1.2
Tap Loss Tolerance
(dB)
5-40(MHz) ±1.0
40-470(MHz) ±1.0
470-860(MHz) ±1.0
860-1000(MHz) ±1.5
Mutual Isolation
(dB)
5-40(MHz) 28 25 26 26 26 27 27 27 27 27
40-470(MHz) 28 25 26 26 26 27 27 27 27 27
470-860(MHz) 25 25 25 25 25 25 25 25 25 25
860-1000(MHz) 25 25 25 25 25 25 25 25 25 25
Reverse Isolation
(dB)
5-40(MHz) 28 27 27 32 35 32 35 40 38 40
40-470(MHz) 30 27 27 32 35 32 32 40 38 40
470-860(MHz) 25 25 28 30 32 30 32 35 35 38
860-1000(MHz) 25 23 25 30 32 30 30 35 32 35
Return Loss
(dB)
5-40(MHz) 20 20 20 20 20 20 20 20 20 20
40-470(MHz) 20 20 20 20 20 20 20 20 20 20
470-860(MHz) 18 18 18 18 20 20 20 20 20 20
860-1000(MHz) 18 18 18 18 20 20 20 20 20 20
