151603. GC-2703 Outdoor 3-Way Splitter
  • 151603. GC-2703 Outdoor 3-Way Splitter

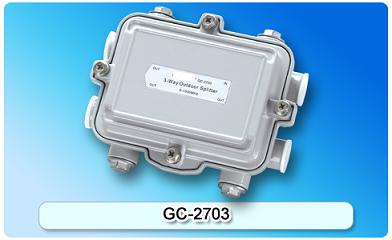

151603. GC-2703 Outdoor 3-Way Splitter

Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft; Aluminum alloy housing with anti-corrosive paint and neoprene weather sealed; With isolation wire netting mounting to avoid RFI and good screening factor; Super-compact size, light weight and easy to attach.
Detailed description

Features:

  • Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft
  • Aluminum alloy housing with anti-corrosive paint and neoprene weather sealed
  • With isolation wire netting mounting to avoid RFI and good screening factor
  • Super-compact size, light weight and easy to attach
  • 75Ohm,5/8〃 -24UNEF Available to configure a KS-F rotary joint
  • Available to supply 5-1000MHz
  • Power passing all ports: 10A AC/DC

Specifications

Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤6.2

≥25

≥20

40-470

≤6.8

≥28

≥20

470-860

≤7.0

≥22

≥18

860-1000

≤7.5

≥20

≥16
