130504. Color Box Camera

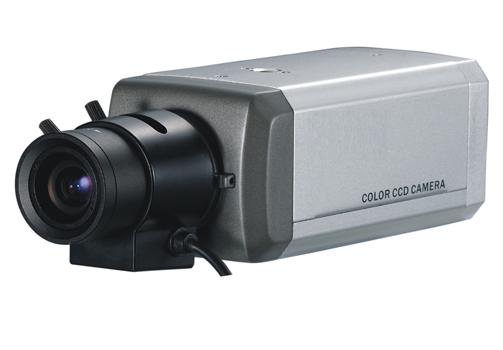

Color Box Camera

Detailed description

Features

1. Electronic shutter speed changeable
2. BLC area selectable
3. AGC changeable
4. White balance mode selectable
5. Color, Contrast Ratio & Sharpness adjustable
6. With mirror function
7. Motion detection on/off

Parameters

Model	DF-508CP	DF-747CD	DF-748CD
Image Sensor	1/4" Sharp CCD	1/ 3” Sony super HAD CCD
Pixels(H*V)	P:512(H)×582 (V)	P:500(H)×582 (V)	P:752(H)×582 (V)
	N:512(H)×492 (V)	N:510(H)×492 (V)	N:768(H)×494 (V)
Scanning System	PAL/NTSC
Horizontal Resolution	420TVL		480TVL
Synchronization	Internal
Minimum Illumination	0.5Lux/F1.2	0.01 Lux/F1.2
Backlight Compensation	ON/OFF Switchable
Electronic Shutter	1/50(1/60)~100,000 Sec.
AGC	ON/OFF Switchable
White Balance	Automatic
Auto Iris Control	VIDEO/DC Switchable
Lens	C/CS
S/N Ratio	≥48dB
Gamma Correction	0.45
Video Output	1.0Vp-p/ 75Ω
Operation Temperature	- 20℃ ~ 50℃
Power Supply	DC 12V, 1,000mA
Dimensions (mm)	115×58×53mm
Weight (g)	284g
