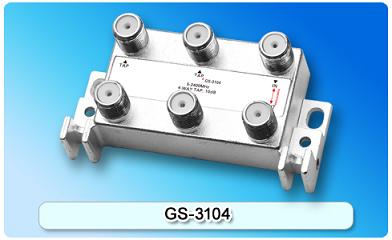

150854. GS-3104 5-2400MHz SAT 4-way Tap
  • 150854. GS-3104 5-2400MHz SAT 4-way Tap

150854. GS-3104 5-2400MHz SAT 4-way Tap

Zinc die-cast housing, tin-plated; Screening factor: 5-2400MHz≥100dB; Capable of suspending installation; Micro-strip circuit design and perfect performance index; Power passing(IN-OUT)30V DC/AC, 1A(MAX.); All ports F-(f)connector,75 Ohm.
Detailed description

Features:

  • Zinc die-cast housing, tin-plated
  • Screening factor: 5-2400MHz≥100dB
  • Capable of suspending installation
  • Micro-strip circuit design and perfect performance index
  • Power passing(IN-OUT)30V DC/AC, 1A(MAX.)
  • All ports F-(f)connector,75 Ohm
  • Bright tin finish, solder or glue sealed optional

Specifications

Item

Frequency Range

16

20

24

27

30

Insertion Loss
(dB)

5-40(MHz)

3.0

1.5

1.2

1.2

1.2

40-1000(MHz)

3.0

2.2

1.5

1.5

1.5

1000-1750(MHz)

3.5

2.5

1.5

1.5

1.5

1750-2400(MHz)

4.5

3.5

2.5

2.5

2.5

Tap Loss Tolerance
(dB)

5-40(MHz)

±1.0

40-1000(MHz)

±1.0

1000-1750(MHz)

±1.5

1750-2400(MHz)

±2.5

Mutual Isolation
(dB)

5-40(MHz)

18

20

20

20

20

40-1000(MHz)

22

22

22

22

22

1000-1750(MHz)

22

22

22

22

22

1750-2400(MHz)

20

20

20

20

20

Reverse Isolation
(dB)

5-40(MHz)

25

25

30

30

30

40-1000(MHz)

25

25

25

25

25

1000-1750(MHz)

22

22

25

25

25

1750-2400(MHz)

22

22

25

25

25

Return Loss
(dB)

5-40(MHz)

10

10

10

10

10

40-1000(MHz)

10

10

10

10

10

1000-1750(MHz)

10

10

10

10

10

1750-2400(MHz)

10

10

10

10

10
